Hydraulic wheel excavator(SITC695DM)
Technical Parameters：
| Operating Weight | 8300kg |
| Bucket Capacity | 0.28~0.33m3 |

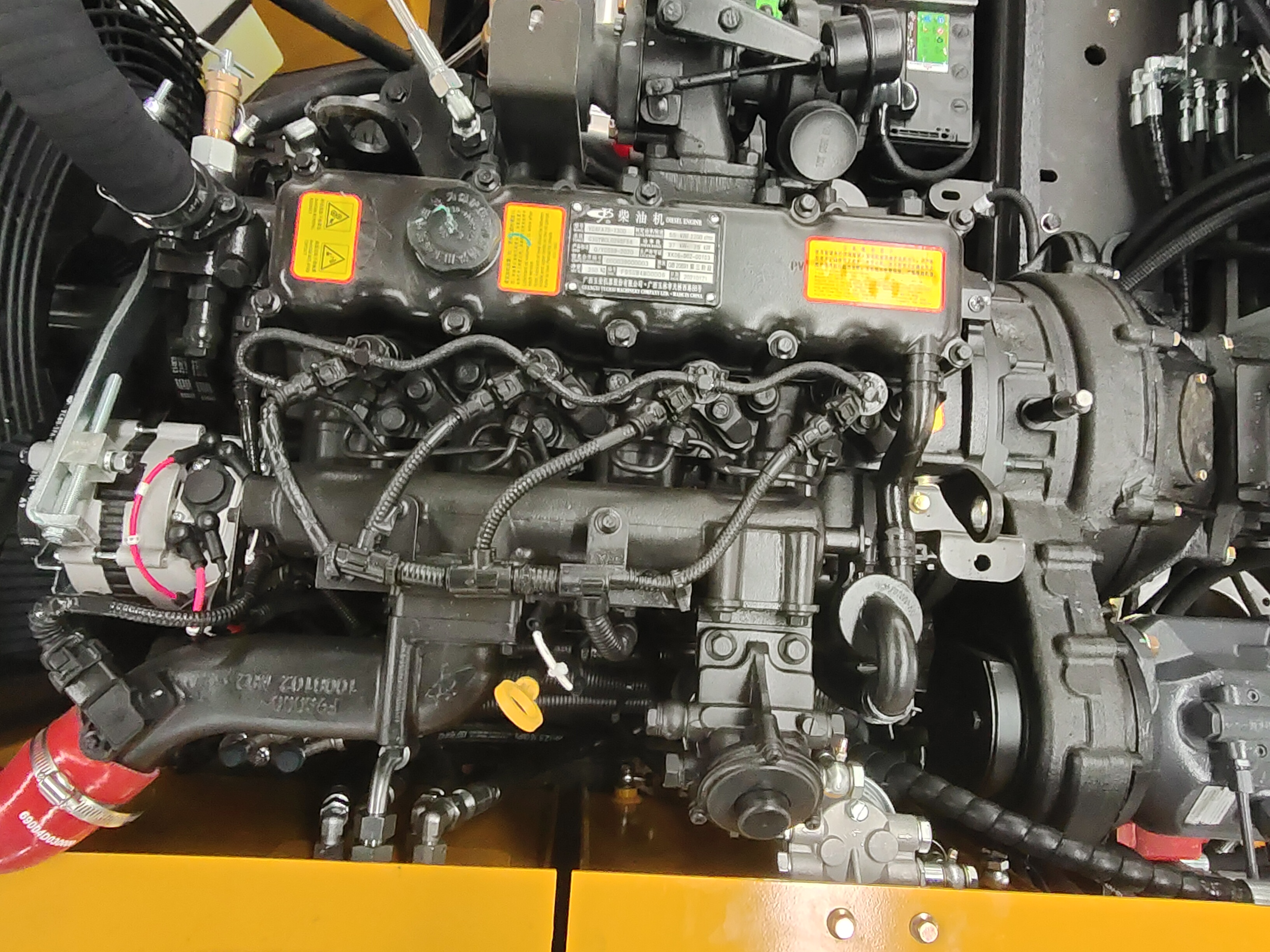

| Engine Model | YC4FA75-T300 |
| Power | 55KW/2200rpm |
| Fuel Tank Capacity | 120L |
| Travel Speed | 30km/h |
| Swing Speed | 12r/min |
| Gradeability | 30° |
| Bucket Digging Force | 38KN |
| Max.Flow | 171/min |
| Pressure | 25MPa |
| Overall Length | 6667mm |
| Overall Width | 2130mm |
| Overall Height | 2897mm |
| Min.Ground Clearance | 350mm |
| Wheelbase | 2635mm |
| Tire width | 225mm |
| Max.Cutting Height | 7615mm |
| Max.Dumping Height | 5565mm |
| Max.Digging Depth | 3195mm |
| Max.Reach | 6810mm |
| Min.Turning Radius | 2323mm |
| Arm Length | 2200mm |
| Boom Length | 3650mm |
1.Is SITC a manufacture or trading company ?
SITS is a group company , include five middle-sized factory ,one high technology developer company and a professional internation trade company. Supply from design — production — publicity — sell –after sell work all the line service team .
2.What’s the main products of SITC ?
SITC mainly support construction machinery , such as loader , skid loader , excavator , mixer , concrete pump , road roller , crane and etc.
3.How long is the warranty period ?
Normally , SITC products have one year guarantee period .
4.What is the MOQ ?
One set .
5.What’s the policy for the agents ?
For agents ,SITC supply the dealer price for their area , and help to do advertising in their area , some exhibitions in agent area also be supplied . Each year , SITC service engineer will go to the agents company to help them tread the technical questions.
