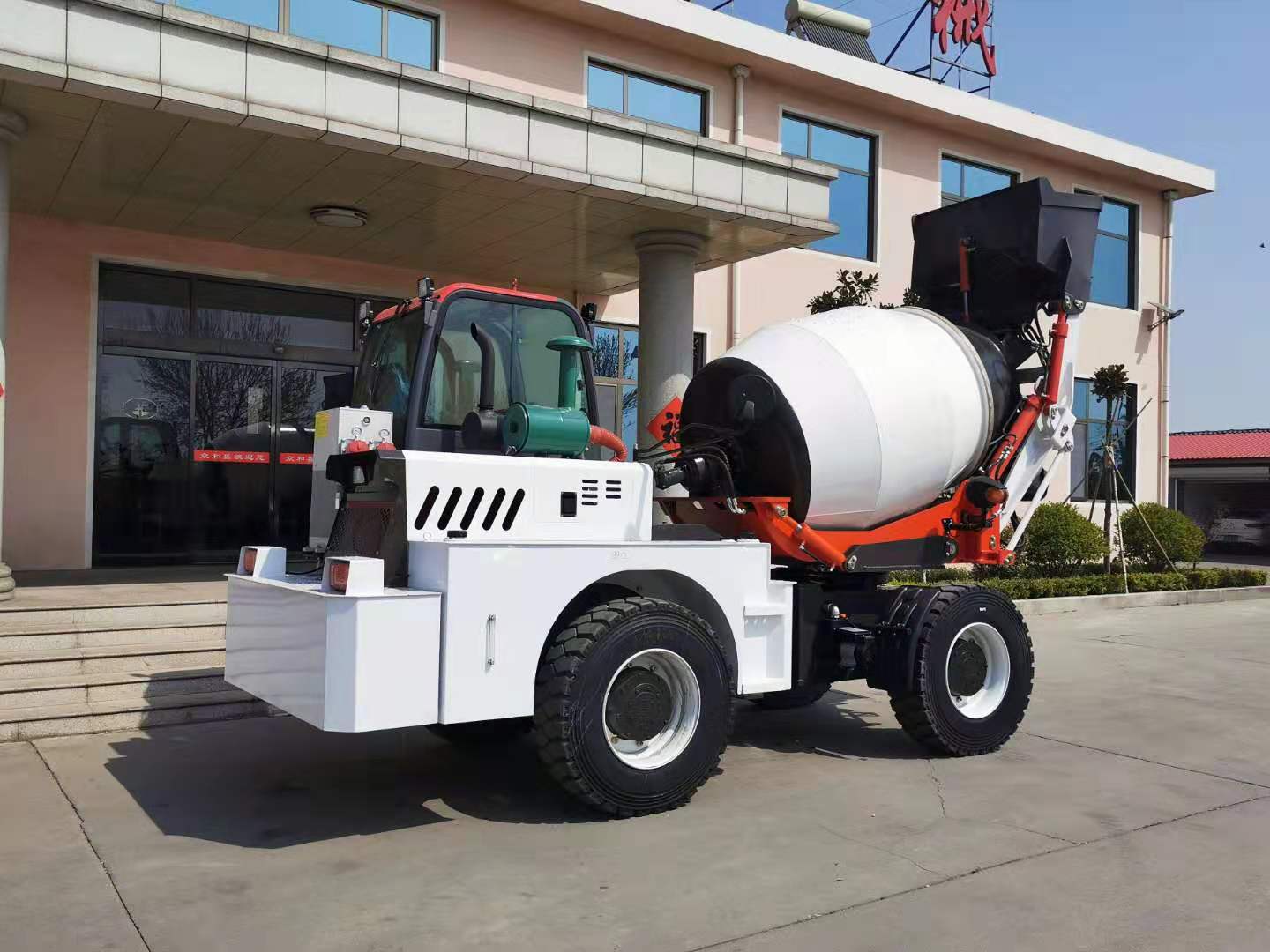

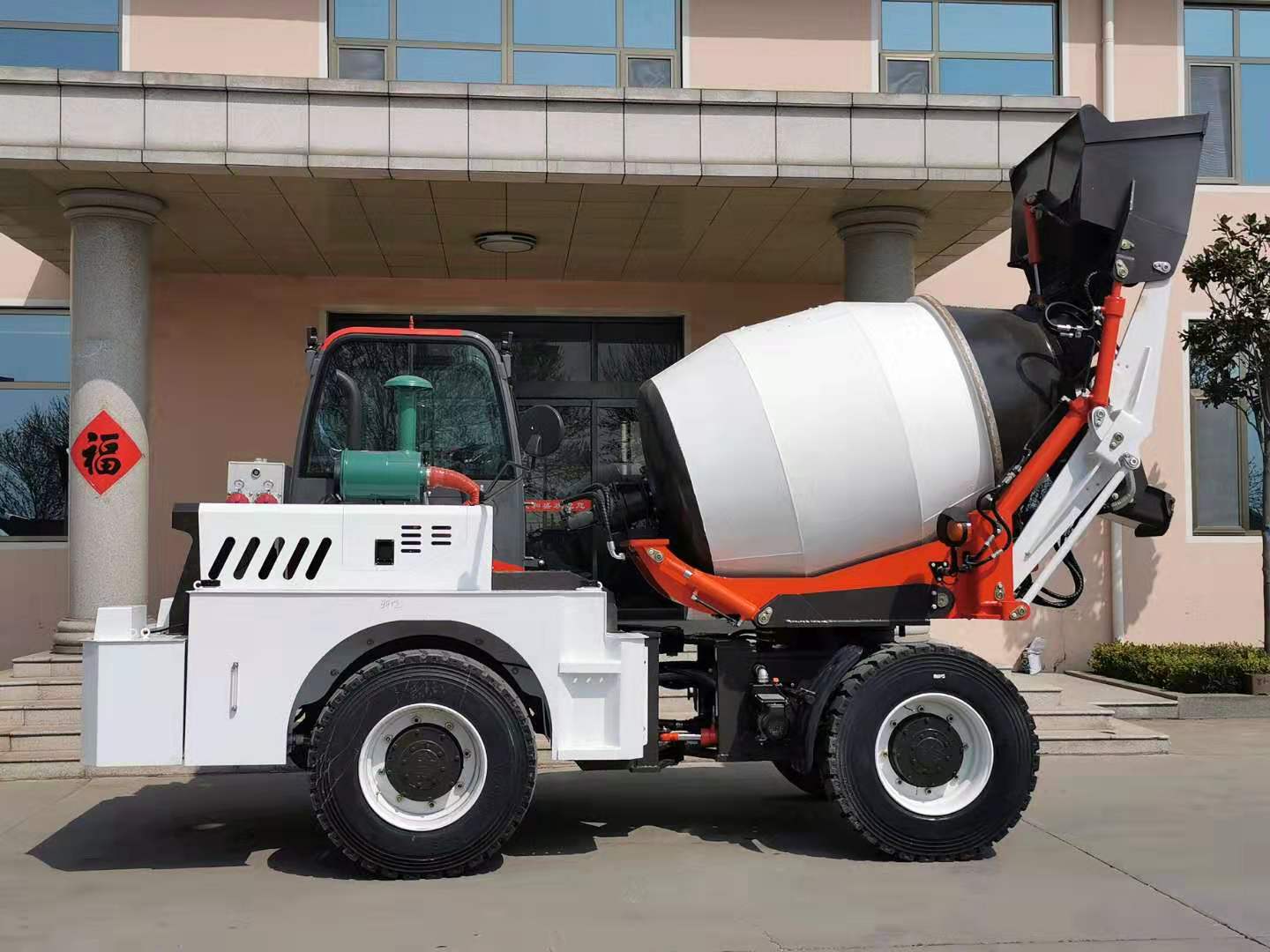

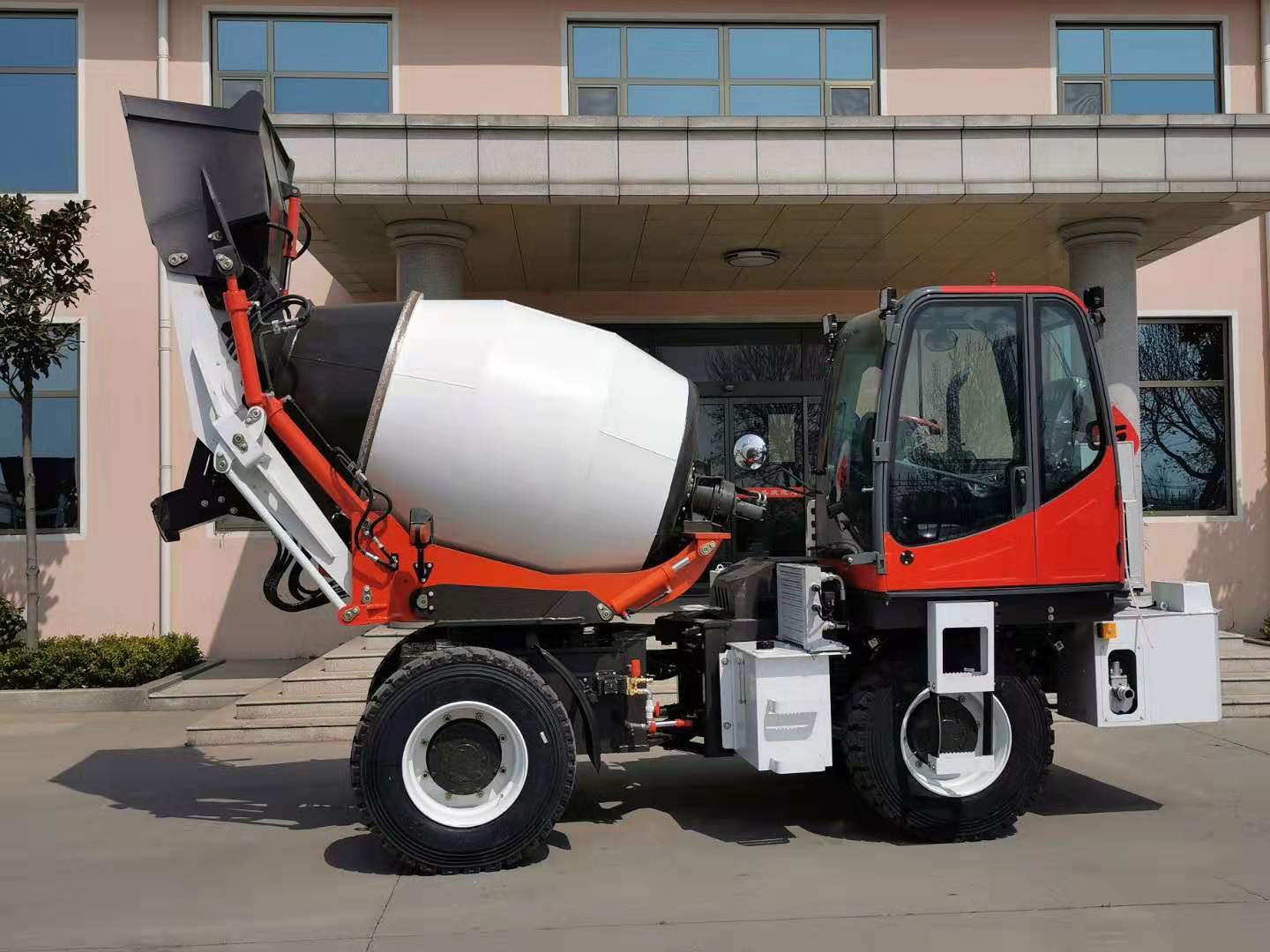

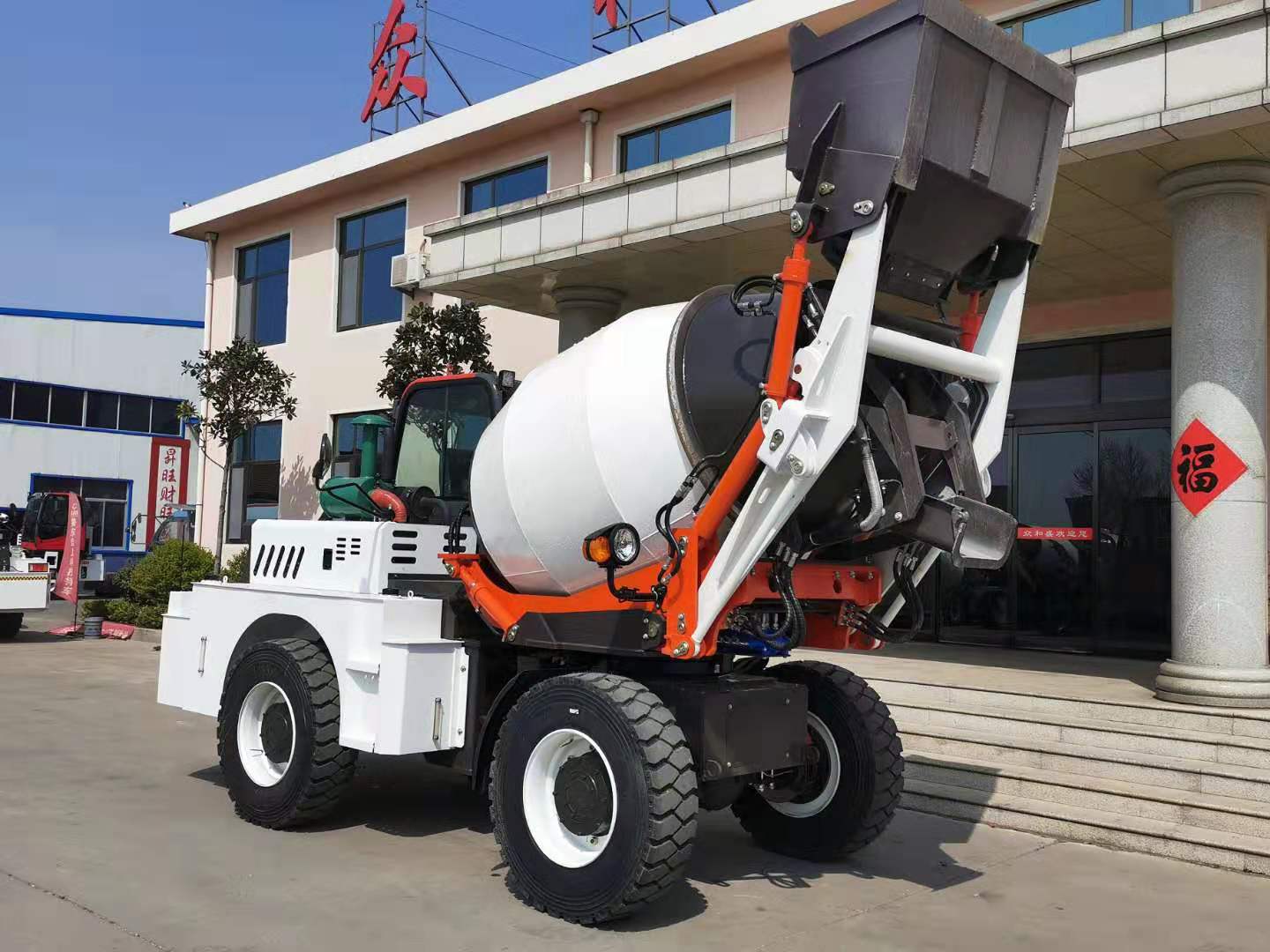

Factory sell cement truck with mixer concrete make 2.0cbm
Factory sell cement truck with mixer concrete make 2.0cbm
PARAMETERS
Characteristics：
l Designed By Italy，Automatic Feeling & mixing system。
l Sample Operation。
l High Active Production，Time and Labor Cost Saving.
l Mixer truck & Loading Car Combined together.
l Guarantee period 6 month.
l 180°Rotate Mixer container.
Parameters:
Diesel engine
Model：Yuchai 4102 supercharged
Piston displacement，Cylinder：3.8L－4cylinder in line
Governor：Mechanical
Cooling：Water cooled，Dry Air Filter
Max power：78kw（116hp）
Max Torque：252NF@2400RPM
Electric system：
Alternator：28V–1500Wa (53.5A)
Battery：2×12V–80AH (272A)
Steering
Auxiliary steering of the induction power steering system with double displacement load on the 2 steering wheels。
4*4drive
Hydraulic torque converter gearbox, hydraulic gear pump, reverse gear control device. Control “working speed” and “moving speed”
Speed level：
3–forward，3–Backword
First level：0–5km/h
Second levle：5–15km/h
Third level：15–30km/h
Shaft and Tyre
Four wheel steering, wheel side speed reducer, gear reducer, flange connection speed。
After the bridge, swing (+ 28 degrees), the bridge configuration of planetary gear reduction gear.
Tyre：… 16-70-22.5PR，Max load: 9500kg , 970kPa
Breaker
The inner wheel type service brake and the emergency brake are used on 4 wheels, and a small servo pump on the independent double circuit is used. Negative pressure type parking brake, front axle configuration internal hub.
Water Supply system
“Self-Priming”24V water pump
Flow：………………….90L/M
Two water tanks with mutual connection and relative distribution，capacity………………2*410L。
Through the electromagnetic flow meter and the operating room display on the inlet of the water intake of the control drum.
Can sit on the driver’s side seat to enable the pump.
Flushing vehicle with high pressure water pump
Mixer & Offload
Double cone drum with double spiral stirring screw and convex bottom.
Drum capacity：………………..3200L
Drum rotate speed：………………17rpm
Concrete Output：……………..2.5m³/container
“Heavy” spherical saddle force frame can be installed 180 degrees and hydraulic rotation, automatic locking by hydraulic brake. The roller rotates through a gear pump and a hydraulic motor in the open circuit, which has a manual electric valve in the operating room and the back of the mixer.
The detachable chute can guarantee directly through the unloading hopper. As the standard configuration provides 1 chute extension.
Hydraulic system
Gear pump：Brand/ American pike
Flow：……………….. 138/88L/Min。
Pressure：…………………… 27.5MPa
3 piece handle multi function control lever.
Aluminum heat exchanger for cooling hydraulic oil。
Closed inlet oil, can be replaced by the external hydraulic oil filter.
Load and Feeding
The loading arm is equipped with an automatic weighing sensor, a double acting loading device and a reset oil cylinder, and a manual control feed port has a standard prompting function.
Capacity：………………………… 700L
Loading times per full：………. 6times
Operating Room
The closed operating room has a heating / cooling system, an inclined front window.
Humanized seats, configuration of flexible suspension and height adjustment function.
Maintenance filler
Fuel tank： ……………………….. 110L
Hydraulic oil：…………………… 200L
Lub oil：……………………… 16L
Weight
Whole set：………………….7500kg
Max load：…………………8500kg
Dimension
Length×width×height：………………..5300×2350×2950 mm
1.Is SITC a manufacture or trading company ?
SITS is a group company , include five middle-sized factory ,one high technology developer company and a professional internation trade company. Supply from design — production — publicity — sell –after sell work all the line service team .
2.What’s the main products of SITC ?
SITC mainly support construction machinery , such as loader , skid loader , excavator , mixer , concrete pump , road roller , crane and etc.
3.How long is the warranty period ?
Normally , SITC products have one year guarantee period .
4.What is the MOQ ?
One set .
5.What’s the policy for the agents ?
For agents ,SITC supply the dealer price for their area , and help to do advertising in their area , some exhibitions in agent area also be supplied . Each year , SITC service engineer will go to the agents company to help them tread the technical questions.
